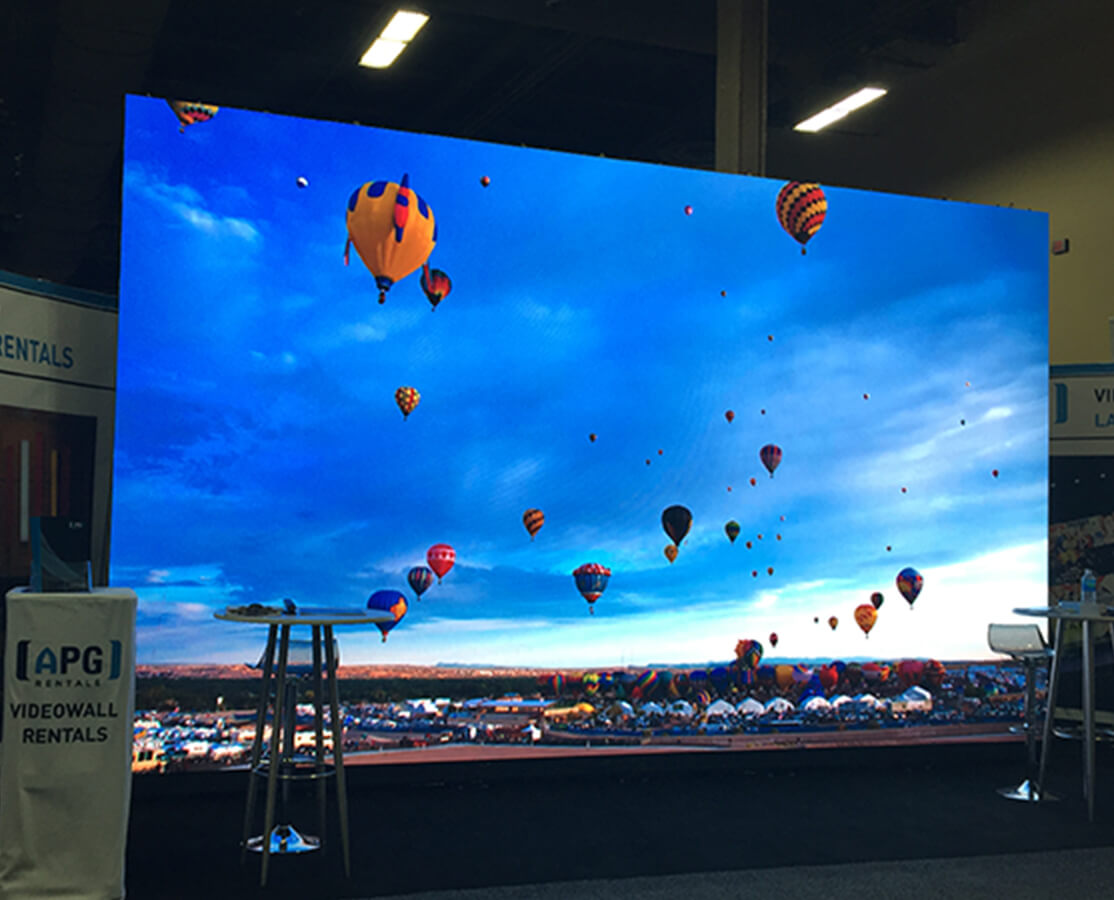

HyperPixel 2.9mm LED Videowall

With a cableless connection for rapid-installation, the Hyper Pixel 2.9mm display features high resolution images, industry-leading service design, and ultra-tight seams to create the ultimate visual experience.

APG Rental Services can be onsite as required to ensure your rental experience runs smoothly.

All APG Technicians are trained to expert level in videowall technology and implementation.

Technical Specification

Display

Type Hyper Pixel 2.9mm
Pixel Pitch 2.9mm
Panel Weight 17.4lbs
Panel Power Consumption ( max./ave. ) 120w / 50w
Brightness 1200 nits
Protection Level ( front/back ) IP40
Pixel Density ( pixel/sqm ) 112,896
Panel Resolution ( w x h ) 168x168
Max. Hanging 16 panels
Viewing Angle ( h/v ) 160° / 140°
Panel Size 500mm x 500mm / 19.68 x 19.68
Module Size 250mm x 250mm / 9.84 x 9.84
Maintenance Method Rear
Refresh Rate ≥ 3840Hz
Brightness / Color Calibration Yes
Grey Level ( adjustable ) 16 bit
Operating Voltage AC100~24V ( 50~60Hz )
Contrast Ratio 5000:1
Panel Material Die-casting Aluminum
LED Type SMD 3-in-1
Color Temperature ( adjustable ) 6500K
Working Humidity ( rh ) 10 ~ 80%
Working Temperature -20°C ~ 50°C
Life Time ( hrs ) > 100,000
Color Uniformity ± 0.0035 Cx,Cy
Luminance Uniformity ≥ 97.5%
Certification CE - TUV . ETL . RoHS . FCC
